This detailed tutorial unveils the advanced Geometry Nodes techniques required to procedurally generate mesmerizing electric field visualizations in Blender, leveraging real physics concepts like Coulomb’s Law and the Principle of Superposition.
Visualizing abstract scientific principles is a powerful way to bridge the gap between complex math and stunning visual art. For artists seeking to incorporate accurate physical dynamics into their procedural workflows, mastering the visualization of phenomena like electric fields offers immense creative control.
In his latest instructional video, 3D Singh VFX provides an essential breakdown of how to turn the mathematical precision of Coulomb’s Law into animated field lines using Blender 4.5’s Geometry Nodes. This comprehensive tutorial focuses heavily on the advanced use of the Repeat Zone (or parallel loop) and the Accumulate node to handle vector summation across multiple points simultaneously.
Transforming Physics into Procedural Art
Geometry Nodes is fundamentally about procedural generation, making it the perfect tool for dynamic data visualization. By using core physics principles, 3D Singh VFX demonstrates how to calculate the electric field (E) based on the classic formula: $K * Q / r^2 * R_{CAP}$ (where $R_{CAP}$ is the normalized distance vector).
The process is broken down into three crucial, increasing layers of complexity:
Step 1: Calculating the Field for a Single Charge
Initial setup involves adding a plane for distributing charges and using named attributes to store the positive or negative charge values. The artist efficiently uses vector mathematics within the node setup to find the distance (R vector) between the test point and the charge, normalizing this vector to calculate the field magnitude correctly. This resulting electric field vector is then utilized in a Set Position node to subtly influence point movement.
Step 2: Visualizing Field Lines with the Parallel Loop
To visualize the flow of the electric field, the tutorial introduces the crucial Repeat Zone. This powerful feature allows the field calculation to iterate, effectively tracing the field direction step-by-step. To ensure efficiency and prevent chaotic point growth, the setup expertly tracks only the latest offset point, converting the resulting point stream into smooth curves using the Point to Curve node.
Step 3: Mastering Superposition with Multiple Charges
Electric fields often involve multiple interacting charges, necessitating the Principle of Superposition. The real breakthrough in this technique lies in handling the complex vector summation required when multiple charges influence a single test position. The accumulated electric fields from each charge must be summed using the Accumulate node before the result is sampled.
When scaling this setup to calculate the fields for *multiple positions* influenced by multiple charges, the creator introduces the Duplicate Elements node. By indexing the positions and duplicating the charge group accordingly, he ensures that the vector summation only occurs within the correct set of charges for each specific position index. This complex procedural chaining is what makes the final dynamic motion graphics visualization possible.
> Expert Insight: The careful use of the `Duplicate Elements` and index management within Geometry Nodes showcases how Blender’s procedural tools can handle mathematical operations typically associated with specialized physics engines, all while maintaining complete artistic control over the visual outcome.
Tools and Resources
While 3D Singh VFX provides the full tutorial for free, artists interested in accelerating their workflow can support the creator and access resources through his channels. The presets and project files are available to supporters on Patreon, along with an ‘Extra Nodes’ utility available through Blender Market or Gumroad.
Conclusion
This detailed approach to physics visualization using advanced Geometry Nodes showcases the immense potential of procedural workflows in creating mathematically accurate, yet artistically stunning, procedural generation projects. By mastering concepts like the parallel loop and correct vector accumulation, you can transform complex equations into compelling visuals. If you want to dive deeper into the technical side of Blender, check out our articles focused on Blender 5.0 updates or explore more unique rendering techniques in our Texturing & Shading section.
Source:

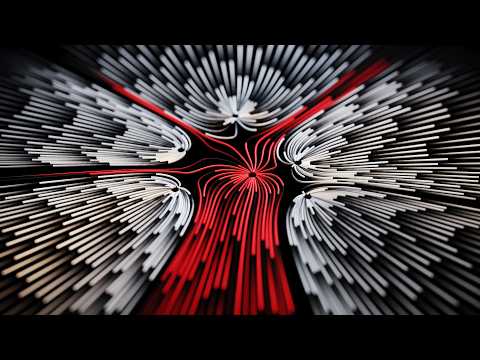

✨Turning Physics into Art – Electric Fields with Geometry Nodes in Blender 4.5 – Detailed Tutorial
